Penetrologger PRO set
The Penetrologger PRO is a robust and precise instrument with GPS for measuring soil penetration resistance in the upper 80 cm of the soil profile. Complete set.
SKU :
D0038262Developed for professionals who need fast, accurate, and actionable insights, the Penetrologger helps to eliminate guesswork in soil compaction testing.

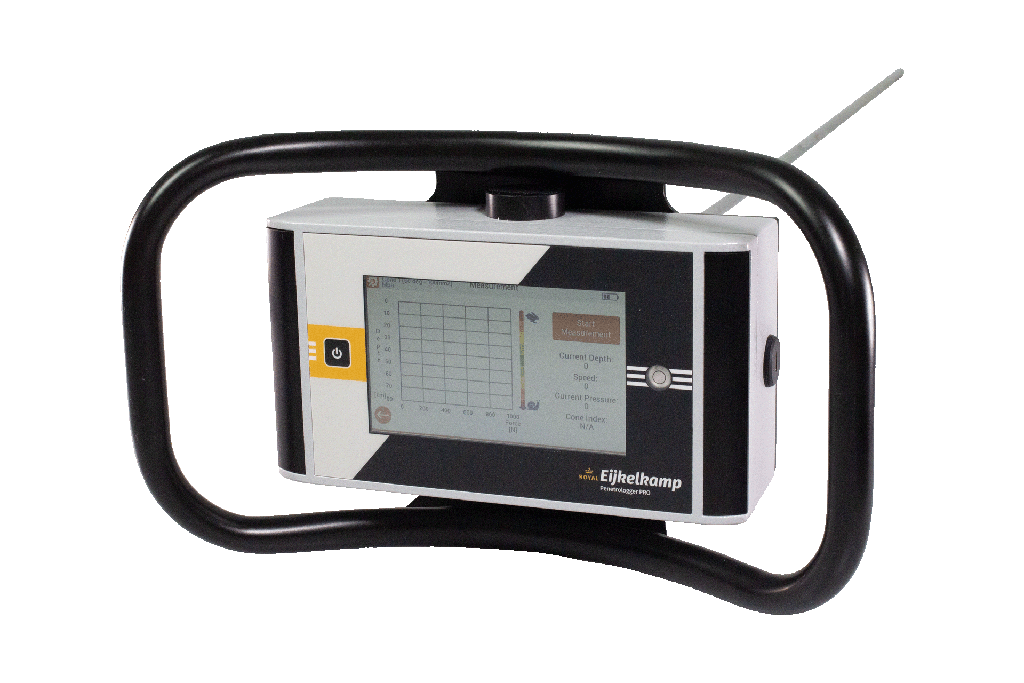

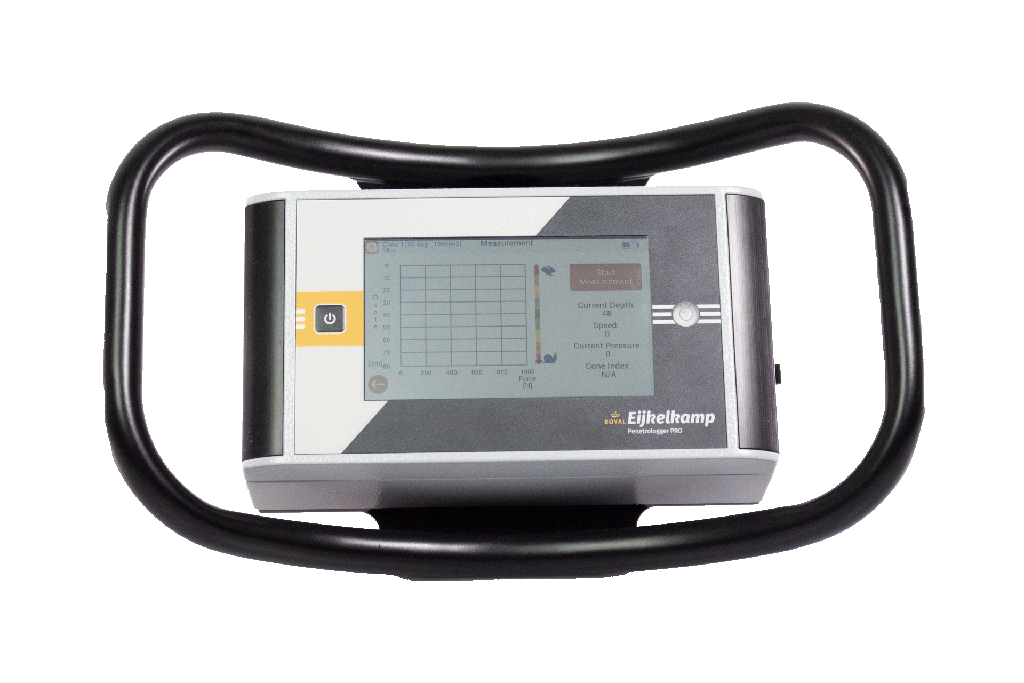

The Penetrologger PRO is lightweight and easy to use. Its housing has an ergonomic design with a protection rate of IP54. The 5 inch high quality colour LCD screen can be operated with gloves and is readable in demanding outside conditions.
The Penetrologger PRO supports Cone Index (CI) measurements.
Key features
- Digital data logging with GPS location
- Optional soil moisture sensor
- Measurement in megapascals (MPa), Newtons (N), PSI, and California Bearing Ratio (CBR)*
- Durable, maintenance-free design for field reliability
- Seamless data integration into existing workflows using the PenetroPROviewer application

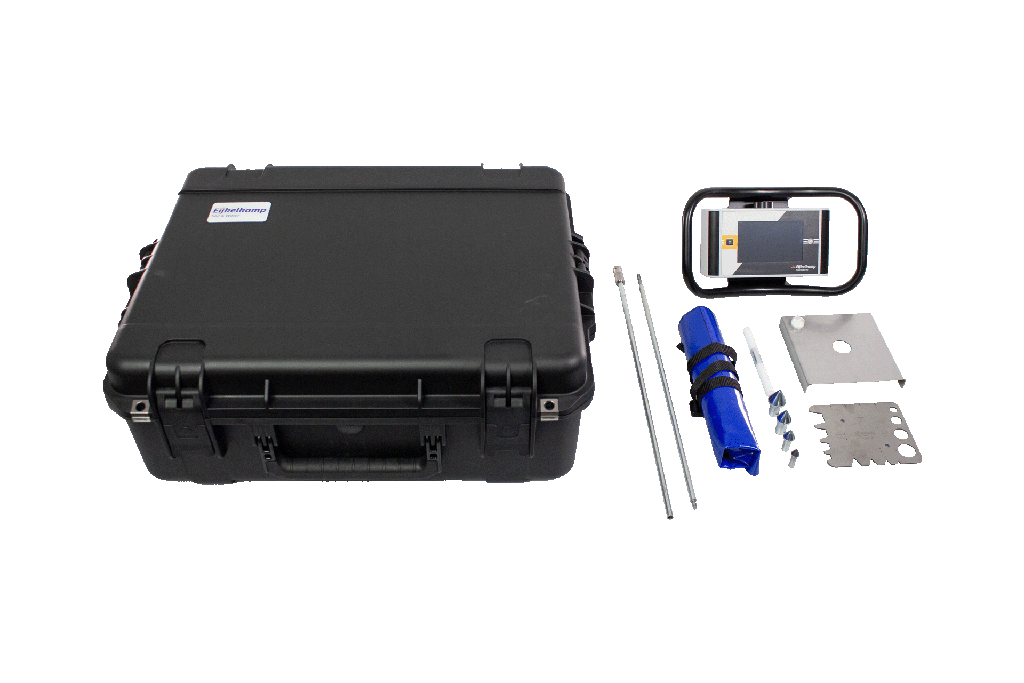

Set Contents

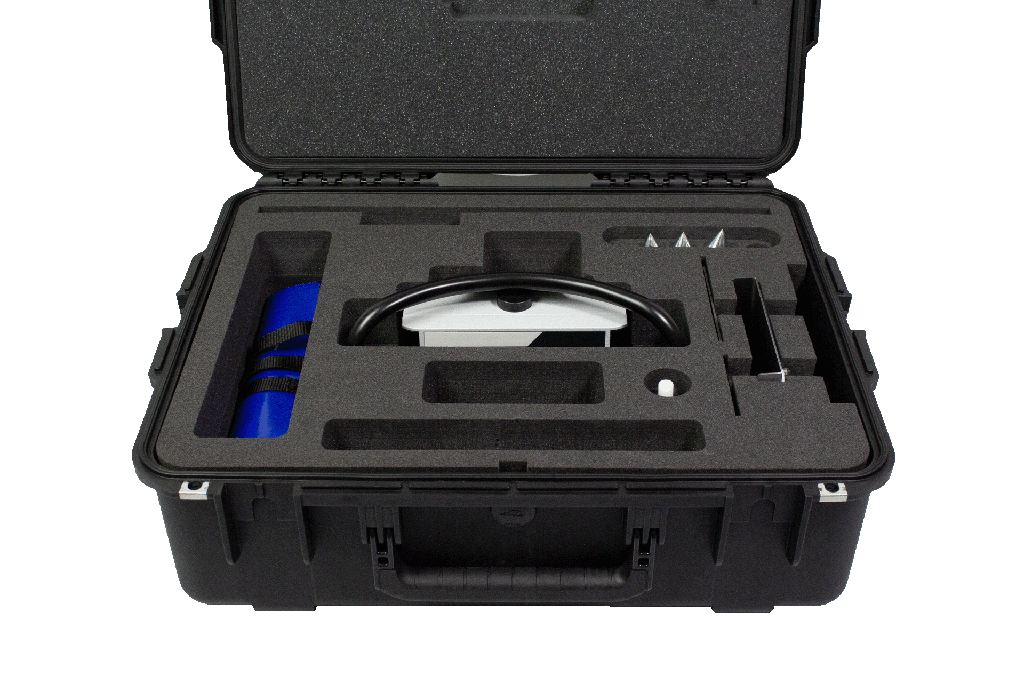

- Case Set Penetrologger PRO
- Penetrologger PRO
- Cone, base area 1 cm2, 60 °
- Cone, base area 2 cm2, 60 °
- Cone, base area 3 1/3 cm2, 60 °
- Cone, 5 cm2, 60 °

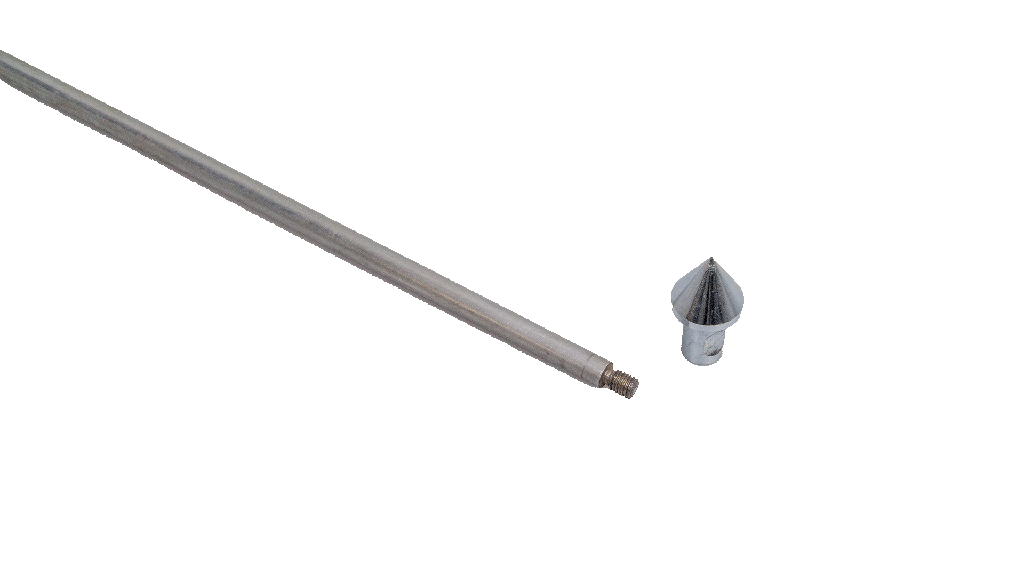

- Probing rod (cone 1 cm2) Ø 8 mm
- Probing rod (cones 2 cm2 - 5 cm2) Ø 10 mm
- Inspection jig for cones
- Depth reference plate
- Penetrologger PRO tool kit
- USB-C to USB-C cable, 1 m
- Penetrologger PRO User manual
Optional
- Soil moisture sensor set
- CBR Cone kit
* Our CBR value is an indication. It needs to be validated through an external CBR test.
| Model | Set |
| Type | Penetrologger |
