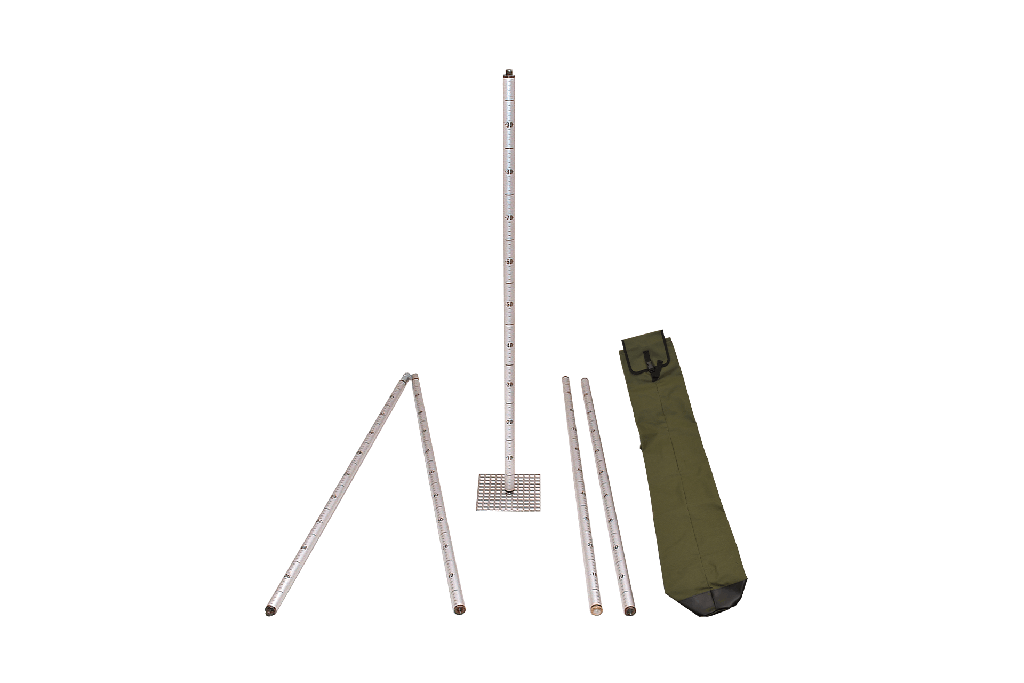

Sediment level stave, standard set
Standard set to measure the sediment level to a depth of 4 m, including transport bag. A sediment level stave is a sounding rod used to measure the sediment layers in surface waters. Either a point or a sediment grid can be mounted to the bottom.
SKU :
1351Original :
1351The set comprises 4 sediment measuring rods of anodic aluminium with screw couplings. These rods are 1 metre long, and have a diameter of 25 millimetres. The sediment measuring rods are marked out in 5 centimetres markings.
The set also includes an elbow fitting for the measuring rods so that depth measurements in the sediment can be taken at an angle. A stainless steel grid and core point make it possible to probe the lower boundary of the sediment layer. In addition, this set makes it possible to penetrate to more solid substrate. The set is presented in a carrying bag.
The standard set can be extended to 7 metres.
Applications
- Geohydrological research
- Determination of the transition between water and sediment
- Determination of the transition between sediment and the solid bed of the water course
- Determination of the depth at the top of the sediment layer at the bottom of the water
| Model | Set |
