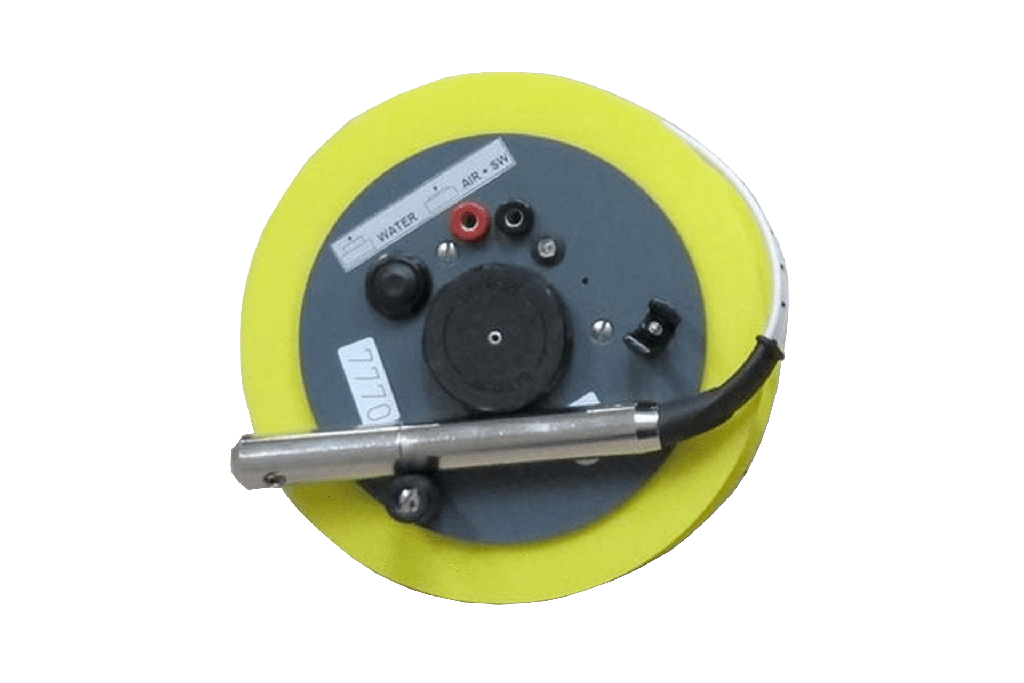

Water level meter, Ø14mm 10 m start-stop
The meter gives a clear signal with light and sound when it comes in contact with a liquid substance, after which the depth can be easily read. Electrode diameter 14 mm, reading accuracy 1 cm, measuring range 10 m.
With inversion switch and connections for signal cable for start-stop system of peristaltic pumps 1225, 1226, 1235 and ROYAL.
SKU :
110330Original :
110330
100% original guarantee
Return within 30days
Free delivery on all orders
The water level meter is part of the standard equipment for measurement of groundwater level. It is provided with a stainless steel probe with a diameter of only 14 millimetres, which is connected to a measuring tape with centimetre graduation. The probe gives clear light and sound signals when the probe comes into contact with a conductive liquid. The user can lift the cable slightly to stop the signal.
The purpose of the start/stop method of preliminary pumping is to limit the drop in water level such that the inflowing water draws many fewer soil particles into the filter pipe, which will result in much more accurate analyses. This water level meter can be connected to the Royal Eijkelkamp peristaltic pump.
Applications
- Geohydrological research
- Water quantity research
