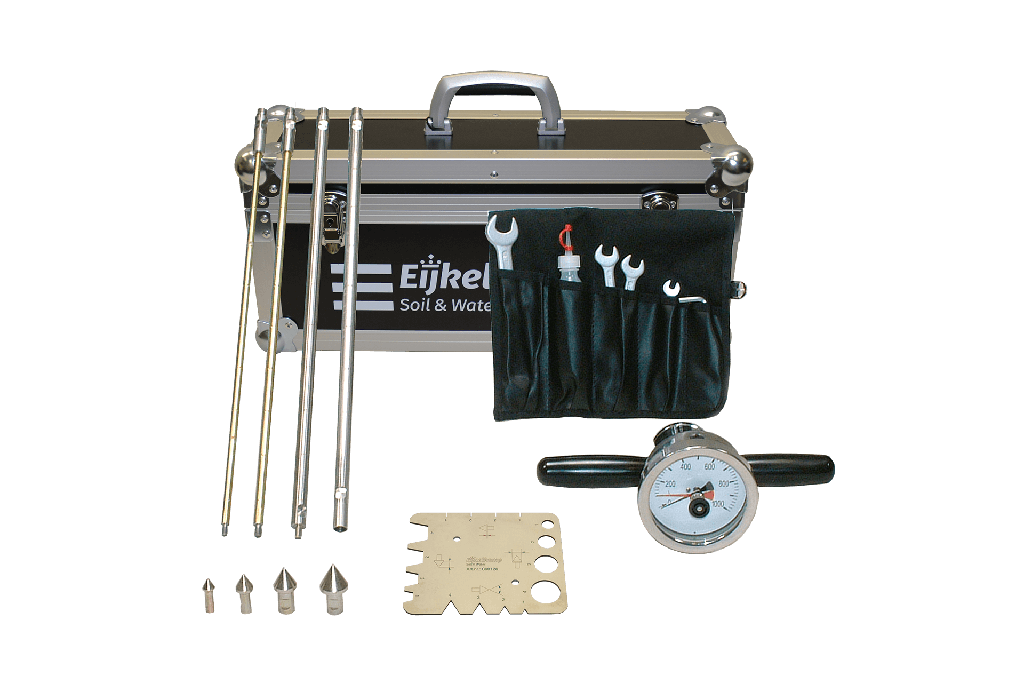

Hand penetrometer Eijkelkamp to 1 m.
The Eijkelkamp Hand Penetrometer Set A, with minimal design, is used to determine the resistance to penetration (bearing capacity) and compaction of soil to a depth of 1 meter. It is easy to use and suitable for both agriculturalists and contractors.
SKU :
0601SAOriginal :
0601SA
100% original guarantee
Return within 30days
Free delivery on all orders
With the hand penetrometer you can easily and quickly measure the resistance of the ground using your own body weight. Simply push the hand penetrometer evenly into the soil to take the measurement. The resistance measured at the cone can be read from the pressure gauge, which indicates it with a red pointer.
The actual resistance to penetration (kPa/cm²) of the soil can be determined by dividing the reading value by the surface of the cone. The size of the to be used cone is depends on the hardness of the soil: the harder the soil, the smaller the cone. However, the larger the cone, the more accurate the measurement will be. The hand penetrometer is suitable for several applications.
Applications
- Geotechnical soil research
- Trafficability or load bearing capacity research (e.g., construction sites)
- Checking artificial compaction of the soil
- Research the growing conditions of plants in the soil
- Tracing compacted layers in the soil (plow sole)
| Model | Set |
| Type | Hand probe device |
