Leichter Scherfestigkeitsmesser, Set
Standard-Set für Messungen bis 200 kPa (20 t/qm) und bis 3 m Tiefe, komplett mit 3 Vinnen (16x32 mm, 20x40 mm und 25,4x50,8 mm), Verlängerungen, Null-Messstab, Werkzeug und Tasche
SKU :
1405Original :
1405The vane tester can be used to determine the maximum shearing force that can be exercised on a soil.
- Perfect for measuring in top soils
- Ideal for agronomists and civil engineers
- Small but sensitive and accurate
- Drag ring for easy read-out
The Royal Eijkelkamp field inspection tester can be used to measure the maximum shear force that can be applied to a soil. Measurement is possible in the field, on the surface, in profile pits, or on the bottom of boreholes, as well as on samples in the laboratory.
The shear stress measured can be read on a clearly readable scale ring. In soft soils it is not necessary to make a borehole first; in order to determine the friction on the extension rods, a dummy vane is available in these situations.

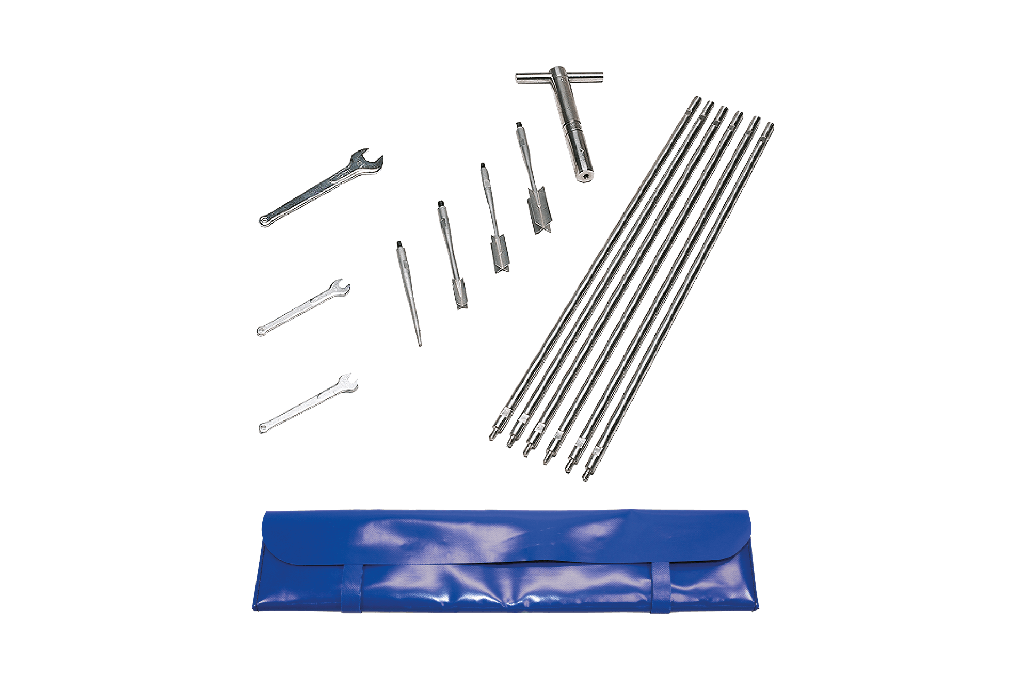

Set Contents
- Field inspection vane tester to 200 kPa (20 t/m²)
- Vanes (3 pieces) : 16 x 32 millimetre (KPa 0-260, coefficient 2,6), 20 x 40 millimetre (KPa 0-130, coefficient 1) and 25.4 x 50.8 millimetre (KPa 0-65, coefficient 0,65)
- Dummy vane
- Extension rods
- Tools
- Carrying bag
